USB 800 FM

Description

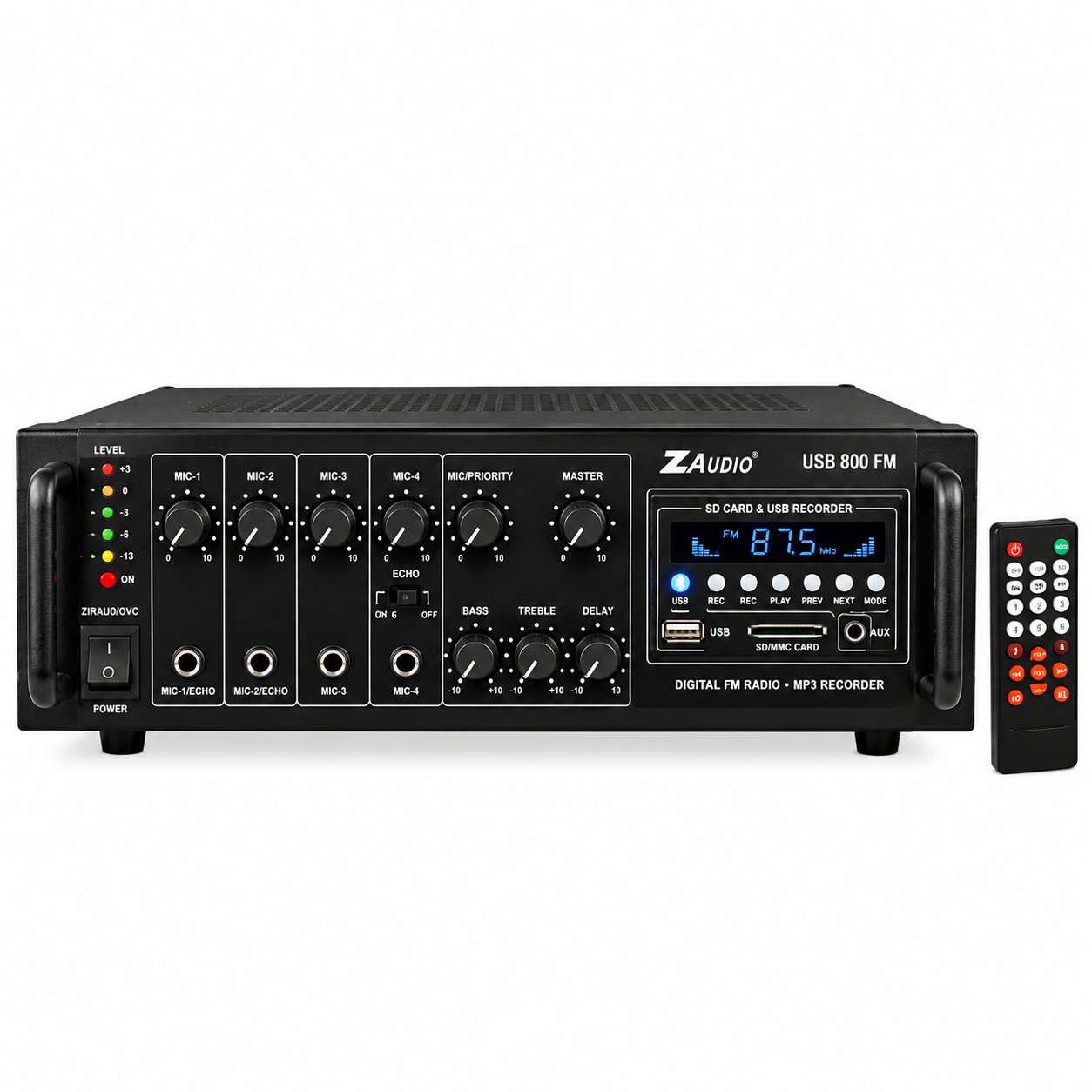

The Z Audio USB 800 FM P.A. Mixer Amplifier is designed for professional public-address applications requiring compact construction and flexible audio control. Delivering 80W RMS output power and 100W maximum power, it features a sturdy black cabinet, conveniently arranged microphone controls, LED indicators and an integrated digital multimedia player for straightforward operation.

Equipped with 4 microphone channels and 1 AUX input, the USB 800 FM supports multiple compatible audio sources. Its built-in multimedia player offers Bluetooth, USB, MMC and SD connectivity, along with MP3 playback and recording functionality. The integrated FM receiver supports an 88–108MHz tuning range, while the included remote control allows convenient operation of supported multimedia functions.

The Z Audio USB 800 FM also features adjustable bass and treble controls, microphone echo and delay adjustments, and an echo/reverb system. Supporting 4Ω, 8Ω, 16Ω, 70V and 100V speaker outputs, along with AC and 12V DC power options, it is suitable for compatible schools, offices, small commercial buildings, meeting rooms and public announcement systems.

Key Features

• 80W RMS Output Power

• 100W Maximum Output Power

• Professional PA Mixer Amplifier

• 4 Microphone Input Channels

• 1 AUX Input Channel

• Bluetooth Connectivity

• MP3 Player with Recording

• USB/MMC/SD Playback

• Remote Control Included

• Built-in FM Receiver

• Adjustable Bass and Treble

• Echo and Reverb System

• Microphone Echo and Delay Controls

• 4Ω, 8Ω and 16Ω Speaker Outputs

• 70V and 100V Speaker Outputs

• AC and 12V DC Power Supply Options

• Compact Black Cabinet

Technical Specifications

• Product Name: USB 800 FM

• Category: P.A. Mixer Amplifiers

• Brand: Z Audio

• Power Output: 80W RMS at 10% THD / 100W Max

• Microphone Inputs: 4 Mic, 0.65mV / 4.7kΩ

• AUX Inputs: 1 AUX, 100mV / 470kΩ

• Frequency Response: 50Hz–15kHz ±3dB

• Bass Control: ±10dB at 100Hz

• Treble Control: ±10dB at 10kHz

• Speaker Output: 4Ω, 8Ω, 16Ω, 70V & 100V

• Line Output: 1V / 1kΩ

• AC Power Supply: 220–240V, 50/60Hz

• DC Power Supply: 12V (12V Car Battery)

• Multimedia Player: MP3 Player / Recorder

• Connectivity: Bluetooth, USB, MMC, SD

• Remote Control: Included

• FM Receiver: 88–108MHz

• Echo/Reverb: 60–300ms, 300–500ms, 500–650ms

• Delay Time: 20–600ms

• Dimensions: 440 × 360 × 160 mm

• Weight: 7,200g (Catalogue)

• Colour: Black
