USB 1200 FM

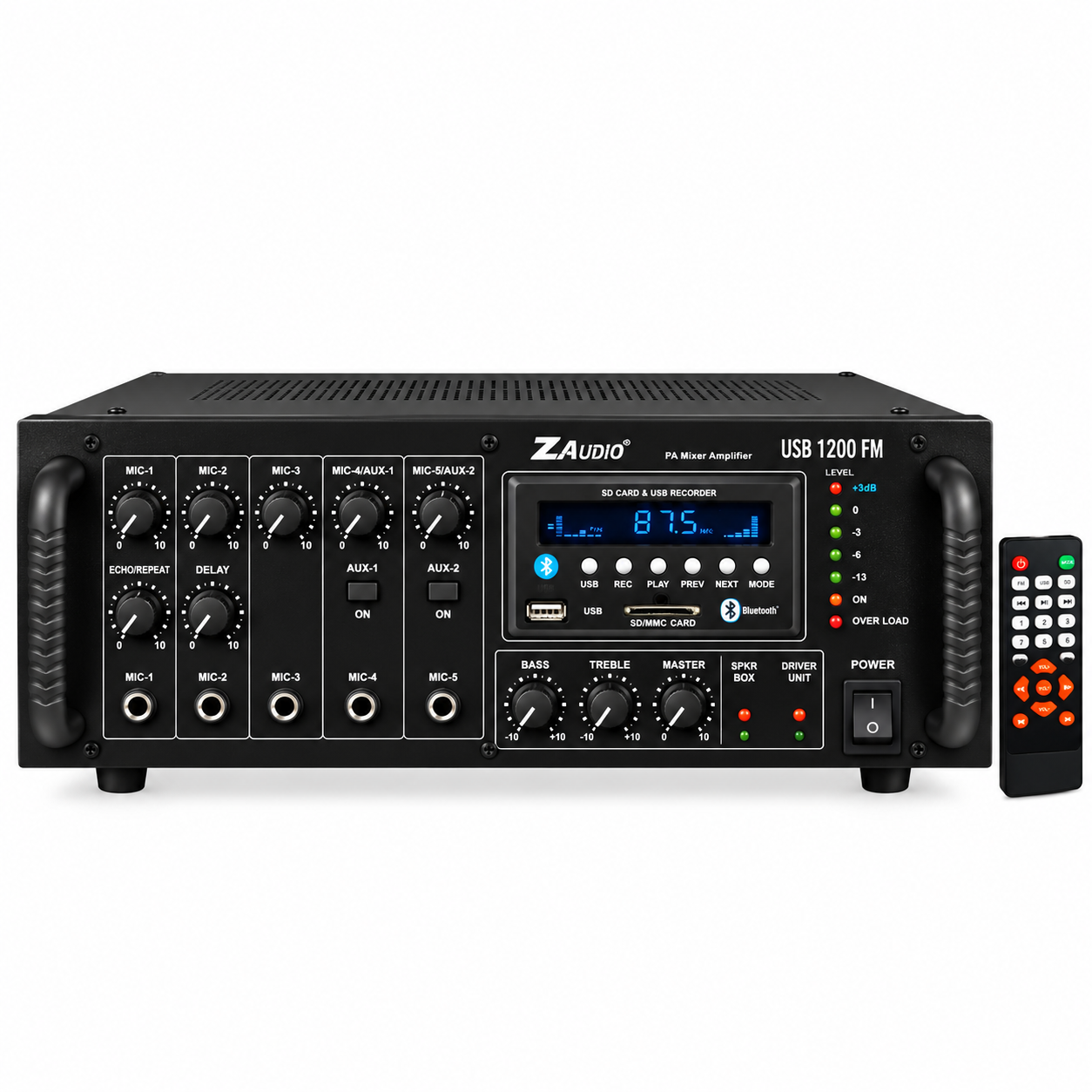

The Z Audio USB 1200 FM P.A. Mixer Amplifier is designed for professional public-address applications requiring efficient audio control and versatile sound distribution. Delivering 120W RMS output power and 160W maximum power, it features a sturdy black cabinet, multiple microphone controls, front-panel audio connections and LED status indicators for convenient operation.

Equipped with 5 microphone channels and 2 AUX inputs, the USB 1200 FM supports multiple compatible audio sources. Its integrated multimedia player offers Bluetooth, USB, MMC and SD connectivity, along with MP3 playback and recording functionality. The built-in FM receiver supports an 88–108MHz tuning range, while the included remote control allows convenient access to supported multimedia functions.

The Z Audio USB 1200 FM also features adjustable bass and treble controls, microphone echo and delay adjustments, and an echo/reverb system. Supporting 4Ω, 8Ω, 16Ω, 70V and 100V speaker outputs, along with AC and 12V DC power options, it is suitable for compatible schools, offices, conference rooms, commercial buildings and public announcement systems.

Key Features

• 120W RMS Output Power

• 160W Maximum Output Power

• Professional PA Mixer Amplifier

• 5 Microphone Input Channels

• 2 AUX Input Channels

• Bluetooth Connectivity

• MP3 Player with Recording

• USB/MMC/SD Playback

• Remote Control Included

• Built-in FM Receiver

• Adjustable Bass and Treble

• Echo and Reverb System

• Microphone Echo and Delay Controls

• 4Ω, 8Ω and 16Ω Speaker Outputs

• 70V and 100V Speaker Outputs

• AC and 12V DC Power Supply Options

• Professional Black Cabinet

Technical Specifications

• Product Name: USB 1200 FM

• Category: P.A. Mixer Amplifiers

• Brand: Z Audio

• Power Output: 120W RMS at 10% THD / 160W Max

• Microphone Inputs: 5 Mic, 0.65mV / 4.7kΩ

• AUX Inputs: 2 AUX, 100mV / 470kΩ

• Frequency Response: 50Hz–15kHz ±3dB

• Bass Control: ±10dB at 100Hz

• Treble Control: ±10dB at 10kHz

• Speaker Output: 4Ω, 8Ω, 16Ω, 70V & 100V

• Line Output: 1V / 1kΩ

• AC Power Supply: 220–240V, 50/60Hz

• DC Power Supply: 12V (12V Car Battery)

• Multimedia Player: MP3 Player / Recorder

• Connectivity: Bluetooth, USB, MMC, SD

• Remote Control: Included

• FM Receiver: 88–108MHz

• Echo/Reverb: 60–300ms, 300–500ms, 500–650ms

• Delay Time: 20–600ms

• Dimensions: 510 × 375 × 225 mm

• Weight: 13,100g (Catalogue)

• Colour: Black
