USB 350 FAN

Description

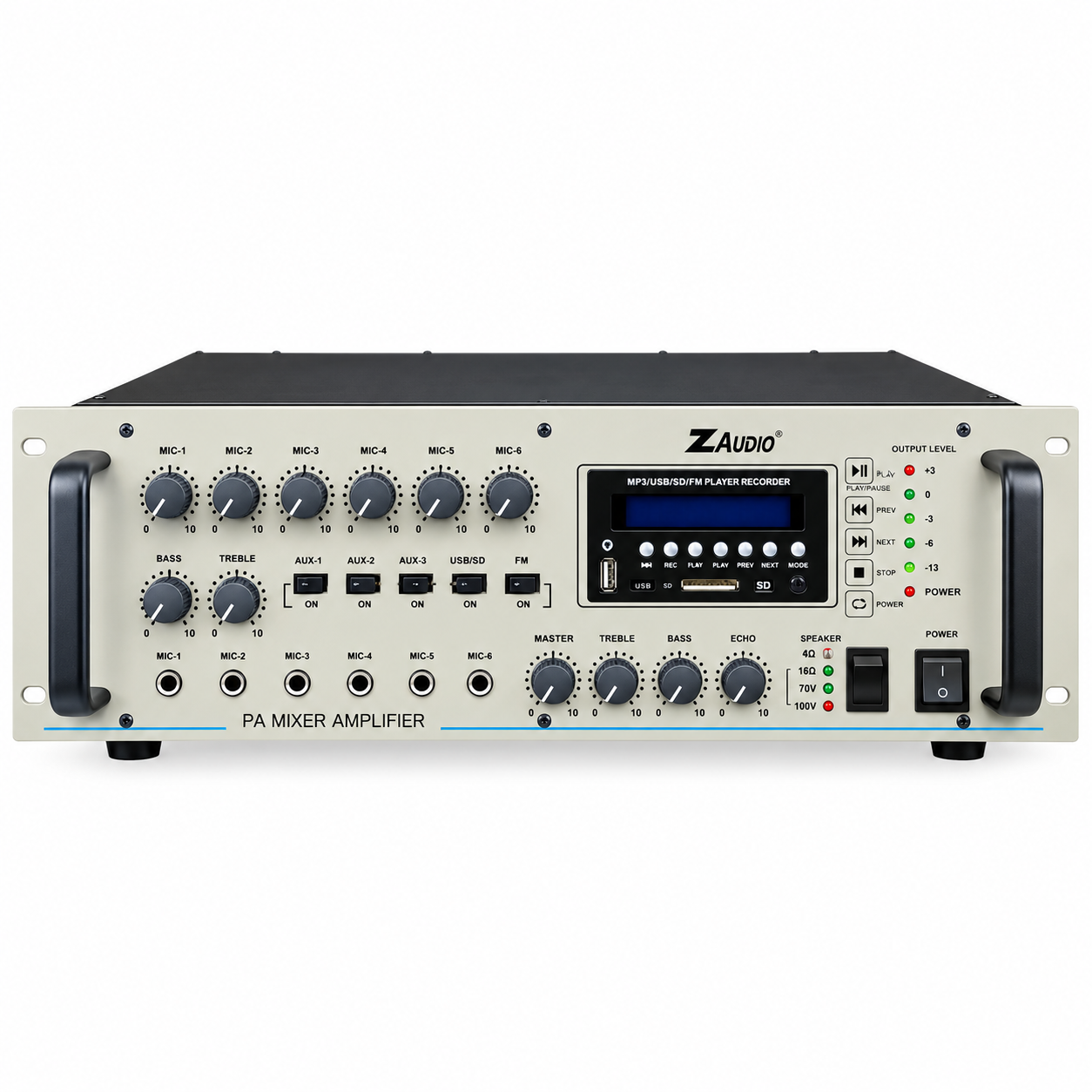

The Z Audio USB 350 FAN P.A. Mixer Amplifier is designed for professional public-address systems, announcements and commercial sound installations. Delivering 350W RMS output power and 450W maximum power, it features a sturdy rack-mount cabinet, multiple microphone inputs and conveniently arranged front-panel controls for managing different audio sources.

Equipped with 6 microphone channels and 2 AUX inputs, the USB 350 FAN allows users to connect multiple compatible audio devices. Its integrated multimedia player supports Bluetooth, USB, MMC, SD, MP3 playback and recording, while the built-in FM receiver provides an 88–108MHz tuning range. Remote-control functionality offers additional operating convenience.

The Z Audio USB 350 FAN features adjustable bass and treble controls, along with an echo and reverb system for microphone applications. Supporting 4Ω, 8Ω, 16Ω, 70V and 100V speaker outputs, AC/DC power options and a rear cooling fan, it is suitable for compatible professional PA installations, schools, offices, conference facilities and public announcement systems.

Key Features

• 350W RMS Output Power

• 450W Maximum Output Power

• 6 Microphone Input Channels

• 2 AUX Input Channels

• Bluetooth Connectivity

• MP3 Player with Recording

• USB/MMC/SD Playback

• Remote Control Support

• Built-in FM Receiver

• Adjustable Bass and Treble

• Echo and Reverb System

• 4Ω, 8Ω and 16Ω Speaker Outputs

• 70V and 100V Speaker Outputs

• Rear Cooling Fan

• AC and DC Power Supply Options

• Professional PA Mixer Amplifier Design

Technical Specifications

• Product Name: USB 350 FAN

• Category: P.A. Mixer Amplifiers

• Brand: Z Audio

• Power Output: 350W RMS at 10% THD / 450W Max

• Microphone Inputs: 6 Mic, 0.65mV / 4.7kΩ

• AUX Inputs: 2 AUX, 100mV / 470kΩ

• Frequency Response: 50Hz–15kHz ±3dB

• Bass Control: ±10dB at 100Hz

• Treble Control: ±10dB at 10kHz

• Speaker Output: 4Ω, 8Ω, 16Ω, 70V & 100V

• Line Output: 1V / 1kΩ

• Preamp Output: 200mV / 600Ω

• AC Power Supply: 220–240V, 50/60Hz

• DC Power Supply: 24V (2 Car Batteries)

• Multimedia Player: MP3 Player / Recorder

• Connectivity: Bluetooth, USB, MMC, SD

• Remote Control: Supported

• FM Receiver: 88–108MHz

• Echo/Reverb: 60–300ms, 300–500ms, 500–650ms

• Delay Time: 20–600ms

• Dimensions: 525 × 397 × 210 mm

• Weight: 16,350g (Catalogue)

• Cooling: Rear Fan
