Description

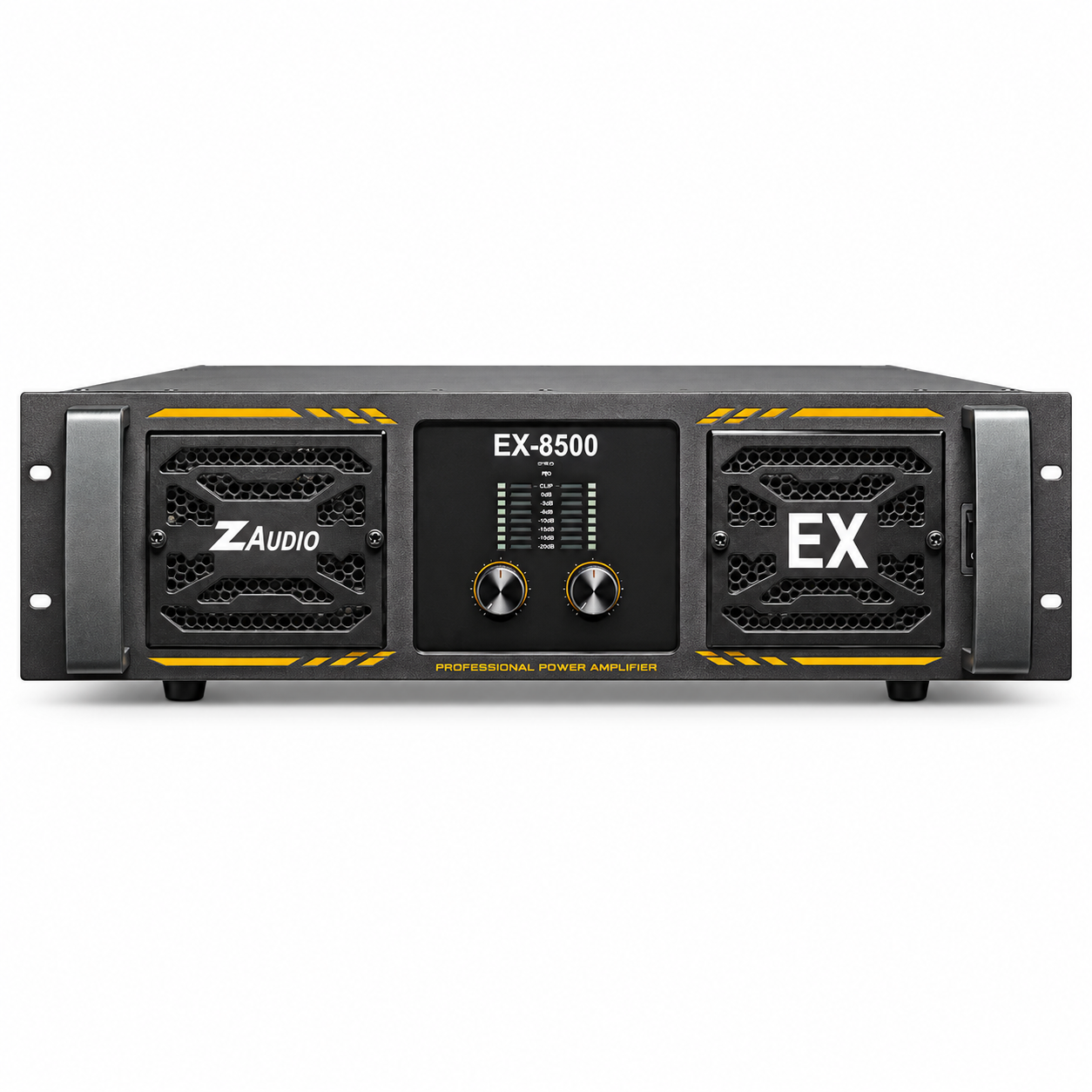

The Z Audio EX-8500 Professional Power Amplifier is engineered for demanding sound applications requiring high output, clarity and dependable performance. Its Class H output circuitry provides efficient power delivery for professional PA systems, live events, auditoriums, clubs and commercial audio installations.
The EX-8500 delivers 2 × 2000W at 8Ω, 2 × 3000W at 4Ω and 2 × 4000W at 2Ω in stereo mode. For applications requiring greater single-channel power, it provides 6300W at 8Ω bridge and up to 8500W at 4Ω bridge.
With a frequency response of 20Hz–20kHz, signal-to-noise ratio of ≥100dB and THD+N below 0.08% at 1kHz, the amplifier supports clean and balanced sound reproduction. Its ≥950:1 damping factor helps maintain controlled speaker performance, especially in high-power sound systems.
The amplifier includes protection against over-current, DC output, overheating and short circuits. The main power section is also fuse-protected to support safer and more reliable operation.
Key Specifications
- 8Ω Stereo Power: 2 × 2000W
- 4Ω Stereo Power: 2 × 3000W
- 2Ω Stereo Power: 2 × 4000W
- 8Ω Bridge Power: 6300W
- 4Ω Bridge Power: 8500W
- Output Circuitry: Class H
- Frequency Response: 20Hz–20kHz (±0.3dB)
- THD + N: <0.08% at 1kHz
- Signal-to-Noise Ratio: ≥100dB
- Slew Rate: 25V/μs
- Damping Factor: ≥950:1
- Crosstalk: ≥62dB at 1kHz
- Input Sensitivity: 0.775V / 1.0V / 1.4V
- Height: 3U
- Weight: 47kg
- Packing Size: 770 × 590 × 210mm
