EX-8500

Description

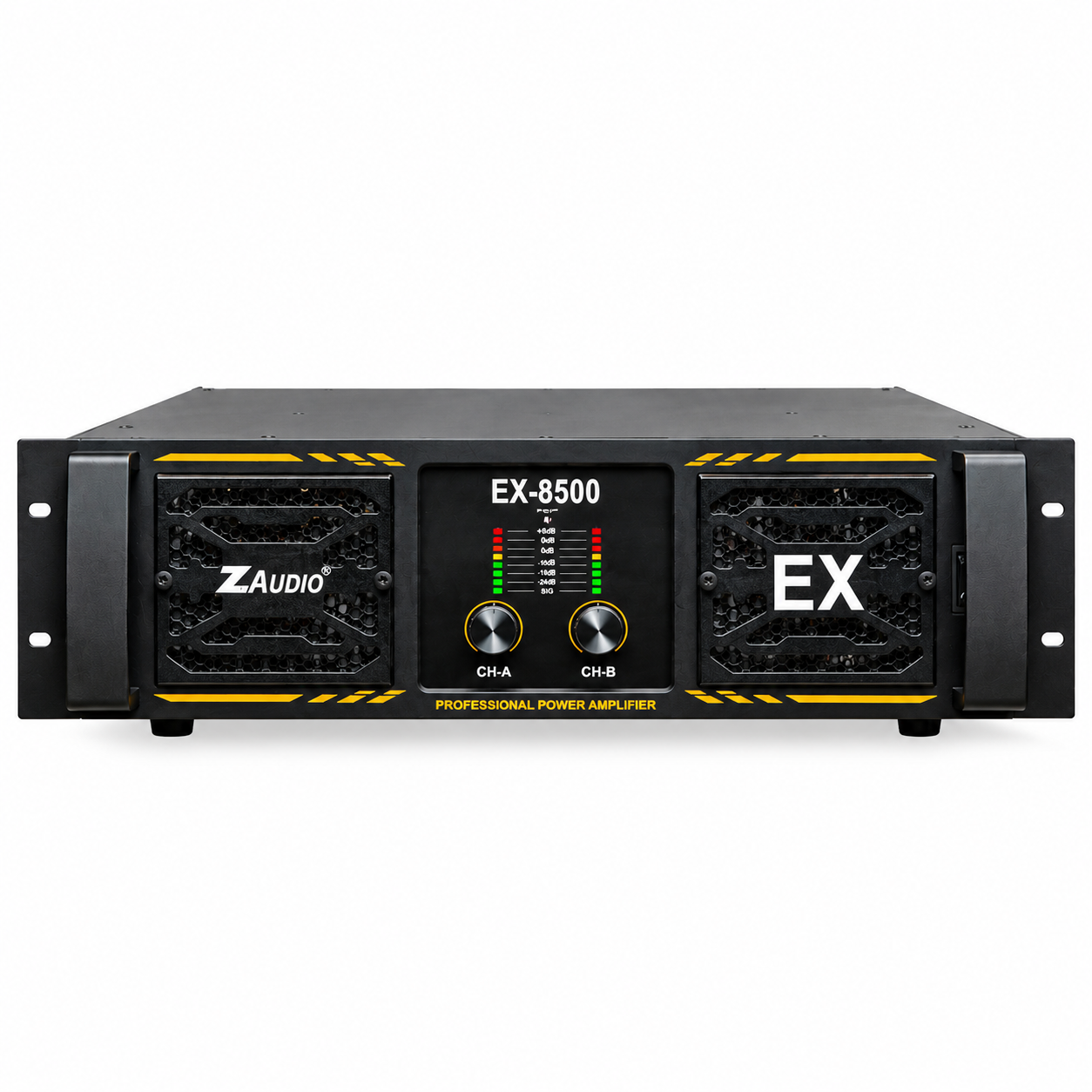

The Z Audio EX-8500 Dual Channel Power Amplifier is designed for professional sound reinforcement systems requiring high output power and dependable performance. Its robust rack-mount cabinet features a distinctive black and yellow design, front-panel level controls, LED indicators and ventilation sections for demanding audio applications.

Equipped with Class H output circuitry, the EX-8500 supports multiple operating configurations, including stereo and bridged operation. With rated outputs of 6300W at 8Ω BTL and 8500W at 4Ω BTL, it provides flexible amplification options for compatible professional speaker systems.

The Z Audio EX-8500 incorporates protection against over-current, DC faults, overheating and short circuits, with mains fuse protection. It is suitable for professional PA installations, live sound reinforcement, event venues and other compatible high-power audio applications.

Key Features

• Professional Dual Channel Power Amplifier

• EX Series Design

• 2 × 2000W at 8Ω Stereo

• 2 × 3000W at 4Ω Stereo

• 2 × 4000W at 2Ω Stereo

• 6300W at 8Ω Bridged

• 8500W at 4Ω Bridged

• Class H Output Circuitry

• Front-Panel Level Controls

• LED Status Indicators

• Professional Rack-Mount Cabinet

• Multiple Circuit Protection Features

Technical Specifications

• Product Name: EX-8500

• Category: Dual Channel Power Amplifiers

• Brand: Z Audio

• Series: EX Series

• 8Ω Stereo Power: 2 × 2000W

• 4Ω Stereo Power: 2 × 3000W

• 2Ω Stereo Power: 2 × 4000W

• 8Ω BTL: 6300W

• 4Ω BTL: 8500W

• Output Circuitry: Class H

• Frequency Response: 20–20000Hz (±0.3dB)

• THD + N: <0.08% at 1KHz

• S/N Ratio: ≥100dB

• Slew Ratio: 25V/µs

• Damping Factor: ≥950:1

• Crosstalk: ≥62dB at 1KHz

• Input Impedance: 20KΩ (Balanced, Stereo) / 10KΩ (Unbalanced, Paralleled)

• Input Sensitivity: 0.775V / 1.0V / 1.4V

• Height: 3U

• Weight: 47kg

• Packing Size: 770 × 590 × 210 mm
