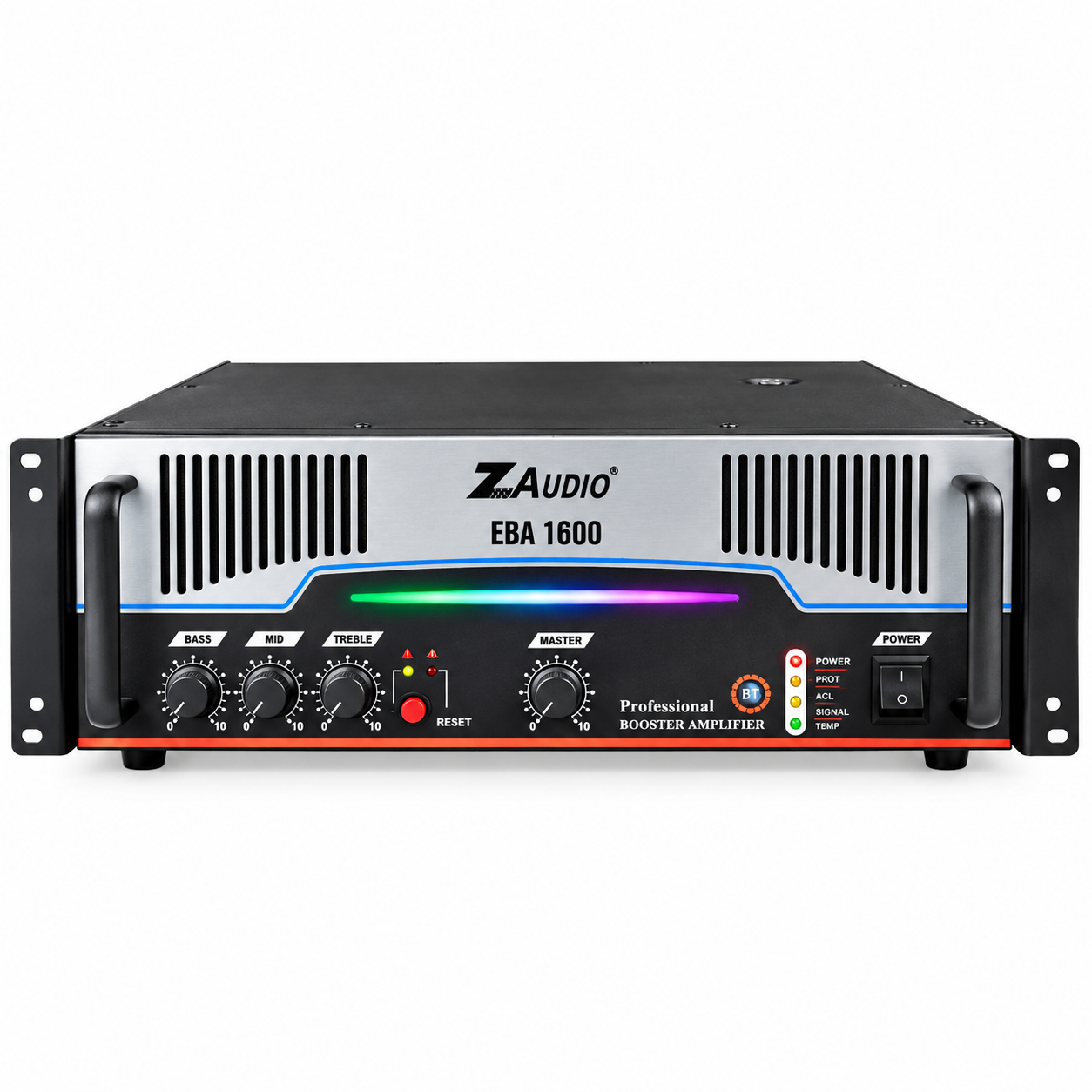

EBA-1600

Description

The Z Audio EBA-1600 Professional Booster Amplifier is designed for large-scale public-address systems, commercial audio installations and professional sound reinforcement applications. Delivering 1600W RMS output power, it features a sturdy 3U rack-mount cabinet, a professional front-panel design and conveniently arranged audio controls for easy operation.

Equipped with adjustable bass, mid and treble controls, the EBA-1600 allows users to customize audio characteristics according to their installation requirements. Its versatile speaker output configuration supports 2Ω, 4Ω, 70V and 100V, making it suitable for compatible speaker and PA distribution systems.

The Z Audio EBA-1600 also features a box speaker/driver unit selector switch and a resettable circuit breaker designed to protect against overload and short-circuit conditions. Supporting AC 220–240V and DC 24V power options, it is a practical solution for professional installations requiring high output power and flexible operation.

Key Features

• 1600W RMS Output Power

• Professional Booster Amplifier

• EBA Series Design

• Bass, Mid and Treble Controls

• Box Speaker/Driver Unit Selector Switch

• 2Ω and 4Ω Speaker Outputs

• 70V and 100V Speaker Outputs

• Resettable Circuit Breaker

• Overload and Short-Circuit Protection

• AC and DC Power Supply Options

• Professional 3U Rack-Mount Cabinet

• Suitable for Large PA Installations

Technical Specifications

• Product Name: EBA-1600

• Category: Professional Booster Amplifiers

• Brand: Z Audio

• Series: EBA Series

• Power Output: 1600W RMS

• Input Channel: 1 × Line 1V / 200mV / 10kΩ Switchable

• Output Channel: 1 × Line 1V / 1kΩ

• Frequency Response: 50Hz–15kHz ±3dB

• Bass Control: ±10dB at 100Hz

• Mid Control: ±10dB at 100Hz

• Treble Control: ±10dB at 10kHz

• Speaker Output: 2Ω, 4Ω, 70V & 100V

• AC Power Supply: 220–240V, 50/60Hz

• DC Power Supply: 24V (2 Car Batteries)

• Rack Size: 3U

• Protection: Resettable Circuit Breaker

• Selector: Box Speaker / Driver Unit
