EBA-1600 BT

Description

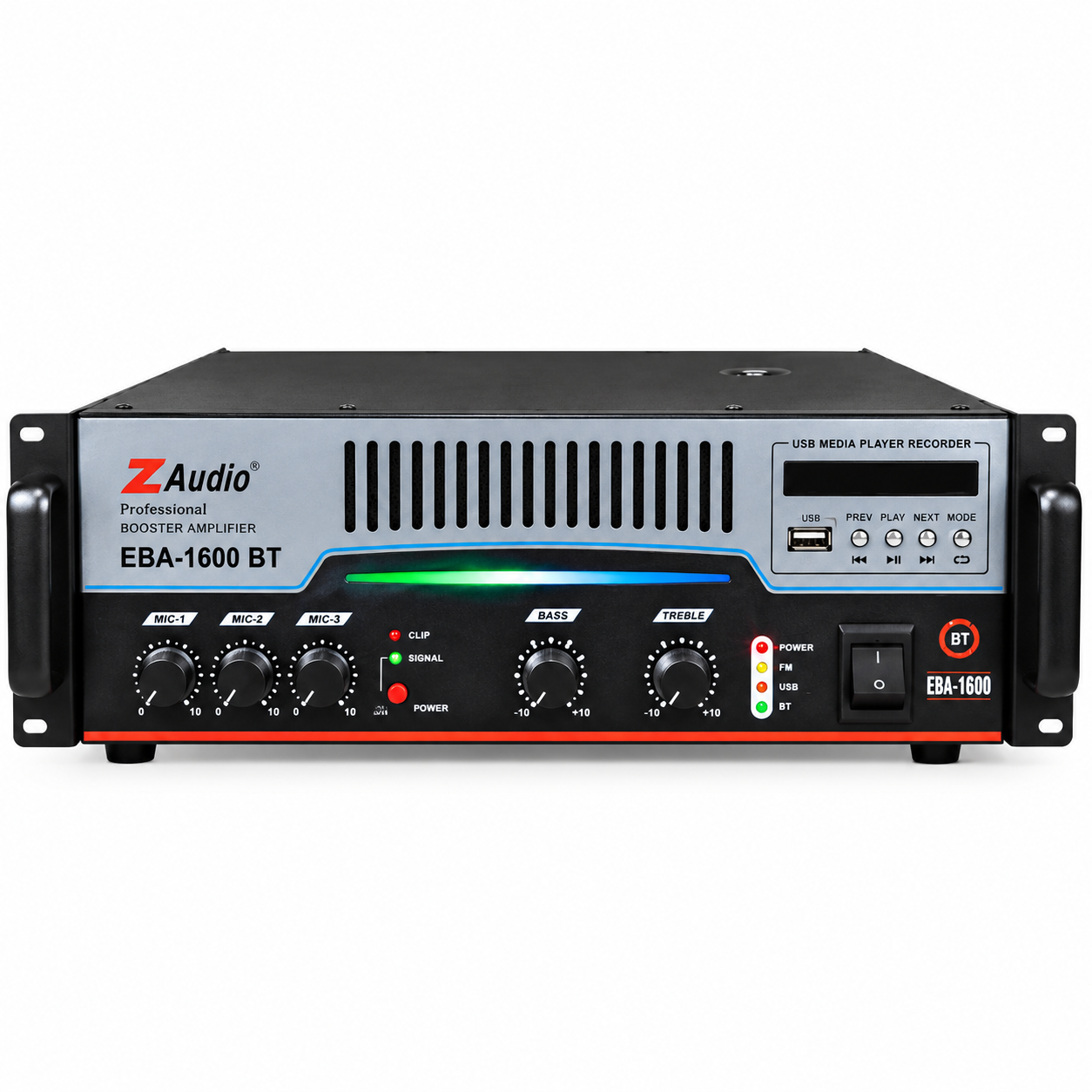

The Z Audio EBA-1600 BT Professional Booster Amplifier is designed for professional public-address systems, commercial audio installations and sound reinforcement applications. Delivering 1600W RMS output power, it features a sturdy 3U rack-mount cabinet, front-panel controls and an integrated multimedia player for convenient operation.

Equipped with Bluetooth, USB/MMC, MP3 playback with recording and remote control, the EBA-1600 BT provides multiple audio playback and control options. Its built-in FM receiver supports an 88–108 MHz tuning range, making it suitable for announcements, background music and other compatible audio applications.

The Z Audio EBA-1600 BT features adjustable bass, mid and treble controls for sound customization. Supporting 2Ω, 4Ω, 70V and 100V speaker outputs, along with AC and specified DC power options, it offers flexibility for compatible professional PA speaker installations.

Key Features

• 1600W RMS Output Power

• Professional Booster Amplifier

• Bluetooth Connectivity

• MP3 Player with Recorder

• USB/MMC Playback

• Remote Control Support

• Built-in FM Receiver

• Bass, Mid and Treble Controls

• 2Ω and 4Ω Speaker Outputs

• 70V and 100V Speaker Outputs

• AC and DC Power Supply Options

• 3U Rack-Mount Design

• Professional Front-Panel Controls

Technical Specifications

• Product Name: EBA-1600 BT

• Category: Professional Booster Amplifiers

• Brand: Z Audio

• Series: EBA BT Series

• Power Output: 1600W RMS

• Input Channel: 1 × Line 1V / 200mV / 10kΩ Switchable

• Output Channel: 1 × Line 1V / 1kΩ

• Frequency Response: 50Hz–15kHz ±3dB

• Bass Control: ±10dB at 100Hz

• Mid Control: ±10dB at 100Hz

• Treble Control: ±10dB at 10kHz

• Speaker Output: 2Ω, 4Ω, 70V & 100V

• Power Supply: AC 220–240V, 50/60Hz

• DC Supply: 24V (2 Car Battery)

• Multimedia Player: MP3 Player with Recorder

• Connectivity: Bluetooth, USB, MMC

• Remote Control: Supported

• FM Receiver: 88–108MHz

• Rack Size: 3U
